2 x RS232/RS485 to LAN modem

รหัสสินค้า: USR-TCP232-52PE
สถานะสินค้า: มีสินค้า

ราคา:

2,750.00บาท

ไม่รวมภาษี: 2,750.00บาท

Mini PCI-E WiFi Card สำหรับ Notebook RTL8188CE

จำนวน: - +

- หรือ -

รายการโปรด
เปรียบเทียบ

ความเห็น | เขียนข้อคิดเห็น

คำค้น: USR-TCP232-52PE, RS232/RS485 to LAN modem

รายละเอียดสินค้า ความเห็น (0)

Product description

USR-TCP232-52PE---RS232/RS485 to RJ45/TCPIP/ Ethernet Converter; It has the following functions:Support upgrade firmware via network;Support IP and domain name at the same time;Support up to 4 link from client when act as TCP Server, send and receive data with id;Can modify MAC address you wanted;Can modify http server port for module built-in http server;Support Keepalive. It has been widely used in IOT field. Besides, it has characters of low price, high speed and high stability.

Function and Feature

New Cortex-M3 kernel, industrial working temperature range, elaborate optimization LWIP protocol stack, stable and reliable.
A RS232 port, can set COM port and working mode independently, work independently, support RTS/CTS hardware flow control.
RS232 and RS485 can be used together, work independently, distinguish the connected serial port via port number.
Auto-MDI/MIDX function, discretionarily connect cross-over or direct network cable, automatic switching.
Support TCP Server, TCP Client, UDP, UDP Server, HTTPD Client various of work modes.
Support virtual serial work way, provide corresponding software.
Serial port highest baud rate from 110bps to 1024000bps(COM0 only max 256000bps).
wide voltage input, more applications.
Support DHCP automatically access IP, can inquire the facility within network through the UDP broadcast protocol.
Supply the protocol for VIP customers, can integrate parameter seting function to users’ software applications.
Provide PC TCP/IP SOCKET programming example, VB, C++, Delphi, Android, IOS.
The built-in web page, also parameter setting via web, can customize web pages for users.
Can also set via UDP, provide the set up protocol and software source code.
Reload button, a key restore default Settings.
RJ45 status indicator light, RJ45 interface built-in isolation transformer, 2 KV isolation.
The global only MAC address bought from IEEE, the user can define MAC address (please state when you make order).
Support upgrade firmware via network.
Support IP and domain name at the same time
Support up to 4 link from client when act as TCP Server, send and receive data with id.
Can modify MAC address you wanted.
Can modify http server port for module built-in http server.
Support Keepalive.
Standard POE power
Support HTTPD Client and WEB to Serial, DHCP,TCP Auto
Special setup software,can search module across network segment
2*RS232 and 1*RS485 port can work at one time
2*RJ45 port,"hand in hand" function
Support Mudbus TCP to Mudbus RTU

Product Parameter

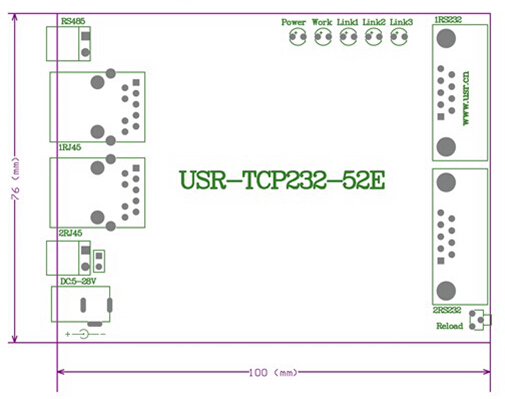

Mechanical dimesion: (L×W×H):103×105×28(mm);
PCB dimension(L×W): 100×76(mm);
DC+5 ~ +28V power input;
DC power plug, 3.81connector power input;
Network power supply standard 48V POE.
3 * serial(2 * RS232, 1 * RS485);
2 * RS232 support hardware flow control;
1 * RS485;
2*RJ45 , 10/100M adaptive,you can take advantage of the free foot cable to achieve 5-28V power supply network port .
Operating Temperature: 0~75 °C (business version) -25-80°C (industry version)
Storage temperature: -40~85 °C
